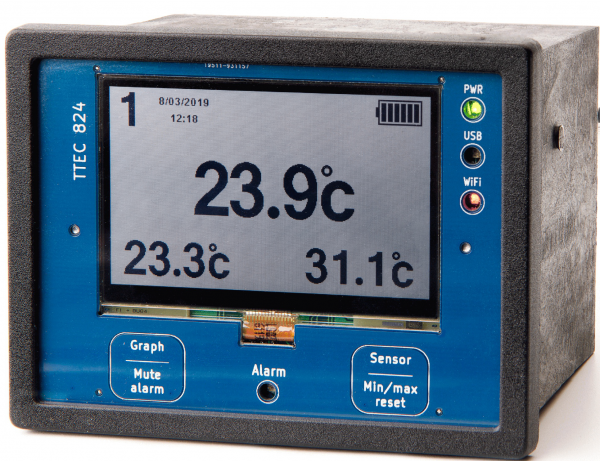

TempTec 824 Paperless recorder with min/max and alarm status

Data logger for monitoring where manual supervision and/or alarm notification is mandatory.
WiFi connectivity to PC and cloud for continuous logging of temperature/time data.

TempReport software for graphing, printing or list of time/temperature readings for export into spreadsheets. Records operator PC and comments.

Phone app available for current temperature, alarm notification, and graph for the last three days.

Highly accurate Pt100 temperature sensor for monitoring of vaccines, incubators, pharmaceuticals, chemicals etc. Sensors may be ordered in the required length.

Two sensor inputs. Sensor 2 may be used for a second temperature or separate door opening sensor.

The large display shows actual temperature and min/max since the last reset. At a press of a button, it shows the graph. Toggle between graphs: 1 Day, 1 Week and 1 Month.

Alarm features: Minimum and/or maximum alarm thresholds and grace periods are entered when the logger is started. The TempTec 824 has a buzzer and a wired alarm output that may be used for a siren, warning lamp or connection to an existing alarm system. At an alarm, the red alarm indicator will turn on, the buzzer is heard, and the relay contact will be closed. The alarm state may be temporarily muted by operators, using the MUTE button. This waiting state is indicated by a blinking light. When an alarm is turned off, operator details and comments are saved.

Power: 8-30VDC. In case of power failure, battery backup secures that logging continues for two days.

Complies with: “Strive for 5”, EN12830 AS 3864-1&2, FDA 21, part 11.

Specifications:

• For panel mounting: 96mmW x 72mmH x100mmD
• Sensor: Pt100: -200 +300EC
• Accuracy: -40 to +120EC ± 0.2EC
• Sensor length: 1.5m standard, other onrequest
• Connectors: Screw terminals
• Communication: USB and WiFi 802.11
• Memory: 500,000+ logs
• Log intervals: 2 sec. to 6 hrs. user selected.
• Casing: PS-PPE GF20 Panel mounting
• Size: 96mm W x 72mm H x 100mm D
• Weight: 250g
• Backup battery: Rechargeable Life P04
• Battery life: 8 years, easy to replace.
